Light series

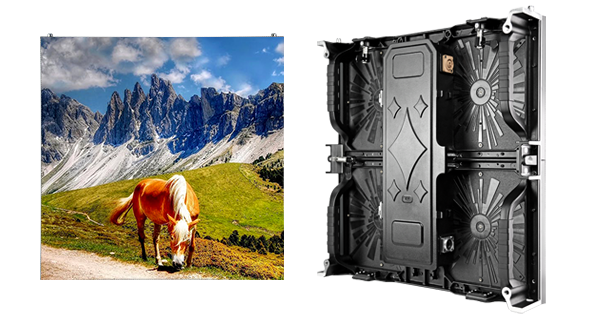

Indoor and outdoor die-casting aluminum Rental series, super light and thin, convenient installation and perfect visual effect, which makes your stage more attractive.
Weight
Thickness

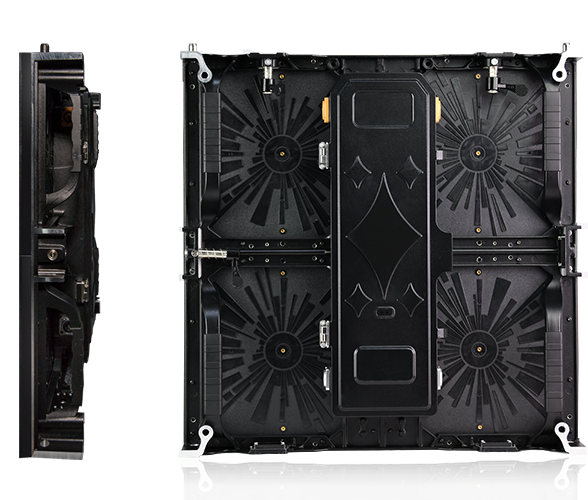

Ergonomic lifting handles, with four modules handles on every cabinet, which makes it easier to move , install and disassemble.
It can be planar and arc splicing.
which can be achieved -10, -5, 0, + 5, + 10 degree arc connections.
Indoor & Outdoor Rental use, it can be IP 65, full waterproof.
Indoor fixed installation, which is fast maintenance and saving artificial person cost.
| Model No. | 3.91（Indoor) | 4.81(Indoor) | 4.81(Outdoor) | 5.95(Outdoor) |
|---|---|---|---|---|
| Pixel Pitch | 3.91mm | 4.81mm | 4.81mm | 5.95mm |
| LED | SMD2020 | SMD2020 | SMD1921(High frame) | SMD1921(High frame) |
| Module Size（mm） | 250 * 250 | 250 * 250 | 250 * 250 | 250 * 250 |
| Module Resolution（dots/㎡） | 64 * 64 | 52 * 52 | 52 * 52 | 42 * 42 |
| Pixel Density | 65,536 dots/m² | 43,264 dots/m² | 43,264 dots/m² | 28,224 dots/m² |
| Cabinet Size（mm） | 500 * 500 | 500 * 500 | 500 * 500 | 500 * 500 |
| Cabinet Resolution（dots/㎡） | 128 * 128 | 104 * 104 | 104 * 104 | 84 * 84 |
| Support hanging or not | YES | YES | YES | YES |
| Best Viewing Angle | H：140° W：140° | H：140° W：140° | H：140° W：140° | H：140° W：140° |
| Max Power Consumption | ≤600w/m² | ≤600w/m² | ≤640w/m² | ≤640w/m² |
| Average Power Consumption | ≤300w/m² | ≤300w/m² | ≤320w/m² | ≤320w/m² |
| Grey Scale | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| Driving Method | 1/16 scan | 1/13 scan | 1/13 scan | 1/7 scan |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness（cd/㎡） | ≥1000 nits | ≥800 nits | ≥2600 nits( or4500nits) | ≥ 4500nits |
| Protection Level | IP30 | IP30 | IP65 / IP54 | IP65 / IP54 |
